Outdoor 802.3bt PoE++ Solution for Breaking RJ45 100m Limitation

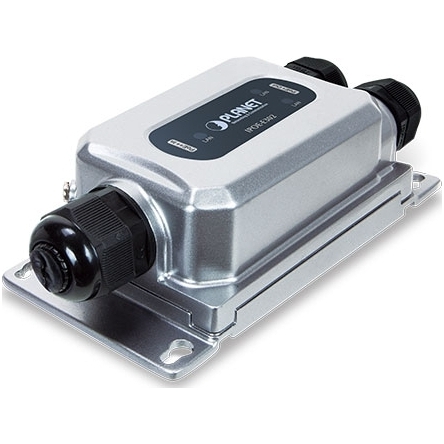

PLANET IPOE-E302 is an industrial IP67-rated 1-port 802.3bt PoE++ to 2-port 802.3bt/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E302 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ or PoH (Power over HDBASE-T) input port and supplies a maximum of 65-watt PoE power budget for 2 PoE output ports, extending both the Gigabit Ethernet Data and 802.3at Power over Ethernet over the UTP cable. The IPOE-E302 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Hardware Specifications
Network Connector PoE in Port
1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ Data + DC in, auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE out Port
2 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE Data + DC out, auto MDI/MDI-X, auto-negotiation RJ45 connector
Switch Architecture Store-and-Forward switch architecture
MAC Address Table 2K Mac address table with auto learning function
Data Buffer 1Mbit
Switch Fabric 6Gbps
Switch Throughput 4.46Mpps @ 64Bytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9Kbytes
ESD Protection Air 8KV DC
Contact 6KV DC
Surge Protection 6KV
Enclosure IP67-rated and IK10 aluminum metal case
Installation Wall-mount ear
LED Display Link/ACT LED x 3
Dimensions (W x D x H) 150 x 43.8 x 72.94 mm (W x D x H)
169.85 x 43.8 x 72.94 mm (W x D x H), with cable gland
Weight 339g
372g (with three waterproof cable glands)
Power Consumption 97 watts/331.6BTU (Full loading with PoE function)
Power over Ethernet
PoE Standard PoE in Port
IEEE 802.3bt PoE++ Type 4 standard PD
PoH (Power over HDBASE-T)
IEEE 802.3at PoE+ end-span/mid-span PD
Per PoE out Port
IEEE 802.3at PoE+ mid-span PSE
PoE Power PoE in Port
50~57V DC, max. 95 watts
44~50V DC, max. 30 watts
Per PoE out Port
48~56V DC, max. 30 watts
Power Pin Assignment PoE in Port
1/2(-), 3/6(+), 4/5(+), 7/8(-) or 1/2(+), 3/6(-), 4/5(+), 7/8(-)
Per PoE out Port
4/5(+), 7/8(-)
PoE Power Budget 60 watts (max.) @ 802.3bt PoE++ input
65 watts (max.) @ PoH input
30 watts (max.) @ IEEE 802.3at PoE+ input
No support @ IEEE 802.3af PoE input
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
CE
Stability Testing IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Ordering Information
IPOE-E302
Industrial 1-Port 802.3bt PoE++ to 2-Port 802.3at Gigabit PoE Extender
